ANATOMIC®

Knee - Total knee prosthesis Primary
CE2797

ANATOMIC® is a primary total knee arthroplasty implant:
Matches bone morphology
Posterior stabilised
Fixed bearing
PCL-sacrificing

“Some devices may not be approved in your country, please contact your local distributor for further information”

xq05xb4y13







Trochlear groove is angled 6° and has a constant radius of curvature, giving the surgeon the choice of keeping the native patella or replacing it. Trochlear groove is offset laterally by 2.3 mm to better reproduce the native femoral trochlea.
Cemented patellar implant available in inset and onset versions.








h6r85v2qfv









Single radius of curvature from 0° to 100° flexion that decreases beyond 100° to allow deep flexion.
6° anterior cut preserves the anterior cortex. 2° posterior cut improves primary stability due to nesting (associated with 6° anterior).





fqy8xfekpm





The centred cage is proportionately scaled, thereby preserving bone stock.
The posterior stabilisation cam provides stability by delaying contact (beyond 90° flexion) with the insert's post, while allowing some rotational movements.








ndp7m0gj41







Insert has curved anterior lip to ensure joint stability throughout the range of motion.
Planar posterior surface allows the lateral compartment to roll.
Posterior part of the insert is thicker to minimise wear in flexion.







n38y8vw109





Grooves on the lateral edges and around the tibial notch help guide insert placement. The insert clips into anterior edge of baseplate.










wikvak3gbp







Tibial baseplate has an anatomical rear cut-out to help match bone morphology.
The contact area with the insert is highly polished, which reduces wear at the tibial baseplate–insert interface.
Keel and delta wing help to stabilise the baseplate in the tibia. The tibial keel is cylinder-shaped (Ø15 mm, length 35 mm) and the same for all sizes. The delta wing sizes match those of the baseplate.





xljry8fzv8





6 posterior tabs, 2 clips and 1 anterior middle contact point help to fix the insert.










7lkvyh2x9f





The ANATOMIC® instrumentation set can be used with Computer Assisted Surgery (AMPLIVISION®), without Computer Assisted Surgery or with patient-specific guides (i.M.A.G.E.®).
This knee replacement system can be implanted using:
- bone or ligament landmarks
- anterior or posterior reference points.
Either a 4-in-1 or 5-in-1 resection guide can be used. The 5-in-1 resection guide is available in Standard and I.M.A. versions.

SCORE_Ii



Femoral components
Cemented: 9 sizes (0 and 8 are optional)
Cementless: 9 sizes (0 and 8 are optional)
AP difference between sizes: 2.6 mm
ML difference between sizes:
Sizes 0 to 4: 2 mm
Sizes 4 to 8: 3.2 mm

Inserts
9 sizes (0 and 8 are optional) and 6 thicknesses: 10, 12, 14, 16, 18 and 20 mm

Tibial components
Cemented: 9 sizes (0 and 8 are optional)
Cementless: 9 sizes (0 and 8 are optional)
AP difference between sizes: 2.3 mm
ML difference between sizes: 3.5 mm

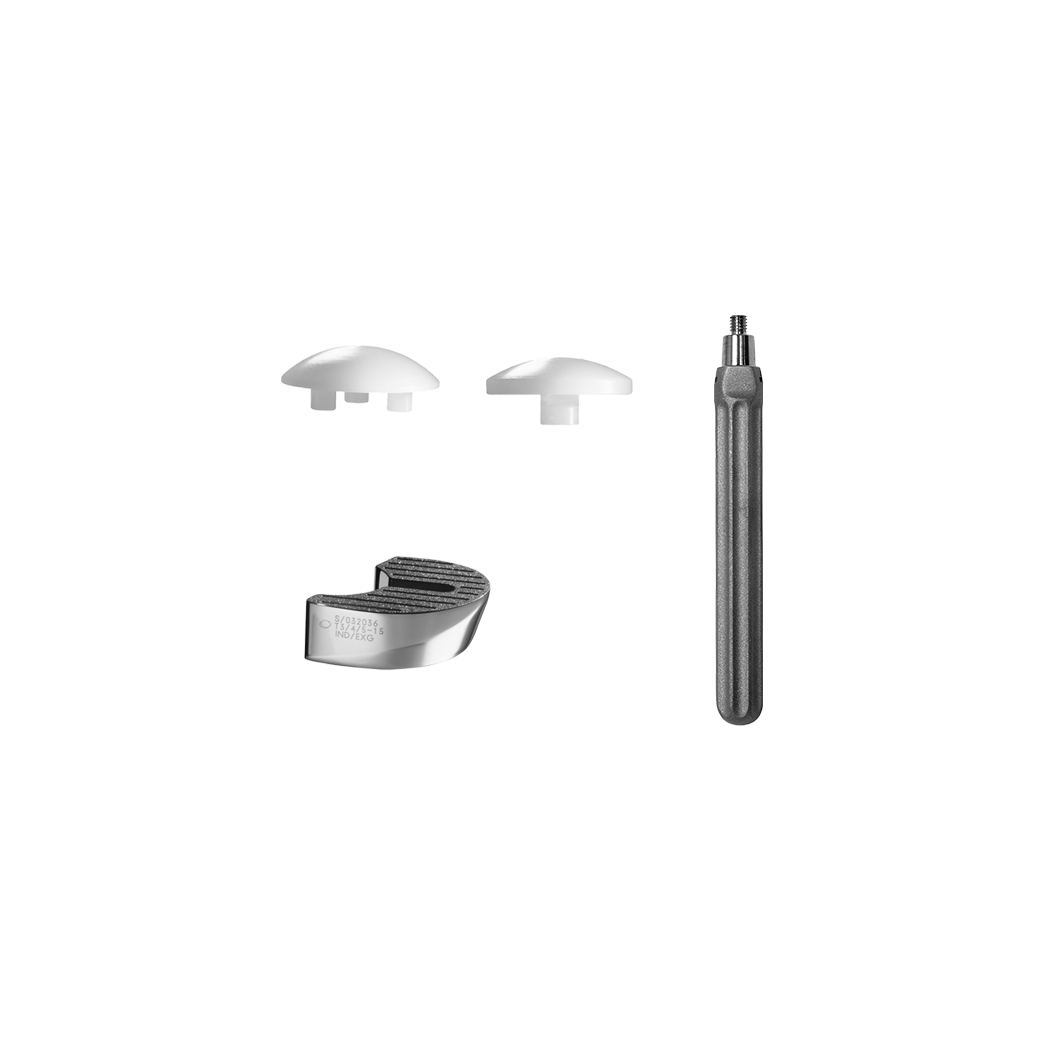

ANATOMIC_2



Patellas :
Onset patellar implant - cemented: Ø 30, 33, 36 mm
Inset patellar implant - cemented: Ø 23, 26, 29 mm

 Compatible long keels :
- Ø 10 to 16 mm
- Lengths 75 to 200 mm

Tibial half-wedges :
- 5 mm thickness
- 10 mm thickness
- 15 mm thickness











Sizes compatibility
