Revision INTEGRALE®

Hip - Femoral stems Revision
CE2797

Revision straight femoral stem.
Full HAP coating.
The INTEGRALE® Revision stem is part of the revision straight femoral stems product line (INTEGRALE® and GENERIC® Revision stems) that differ only in their fixation method.

In clinical use since 1999.

“Some devices may not be approved in your country, please contact your local distributor for further information”

xclmkegkff





Grooves increase the bone-implant contact area; they are closed proximally and open distally.
Proportionately-scaled sizes.
Impaction limit corresponds to HAP boundary.
Material: titanium.
Coating: Uniform 80 µm thick HAP.








cp9kc62h5k





Intra-medullary segment within metaphysis and diaphysis is identical to the INTEGRALE® Primary Femoral Stem.
Main difference with INTEGRALE® primary femoral stem in proximal segment:
-Neck-shaft angle: 135°.
-Neck was lengthened to preserve height of femoral head centre.





f5mdaaqclg

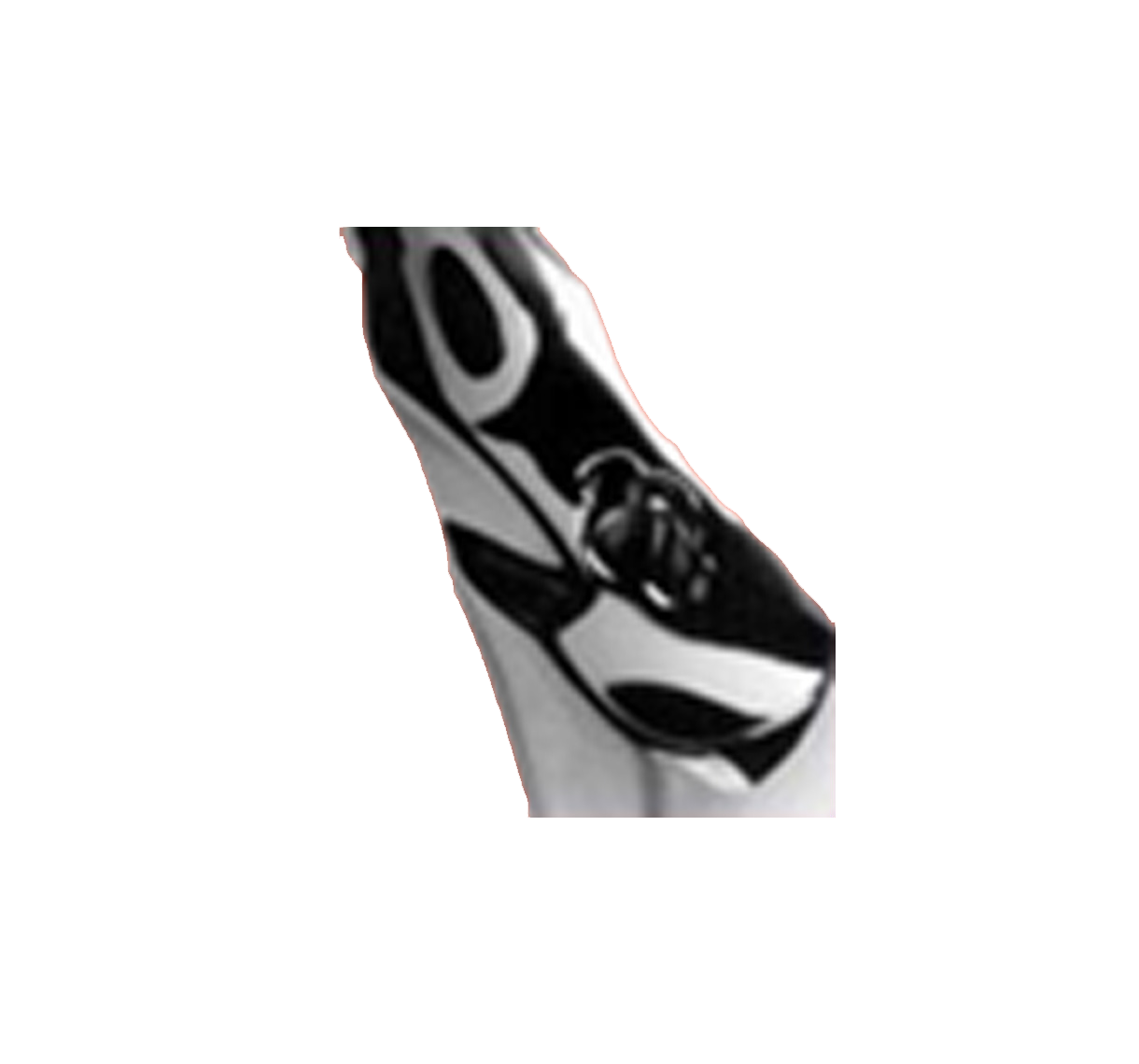

Oval impaction hole on top of stem.
Threaded hole used for extraction.








ux9vmhfa02





Main difference with INTEGRALE® primary femoral stem in distal segment:
-Anteroposterior bevel.
-50 mm longer.








475fd3i11o





Femur stem option within a product line based on the same concept:
-INTEGRALE® Revision: cementless femoral stem
-GENERIC® Revision: cemented femoral stem

Standard instrumentation set is similar to the one used with primary straight femoral stems.
Only the rasps and trial necks differ.
