LOGIC®

Hip - Femoral stems Primary
CE2797

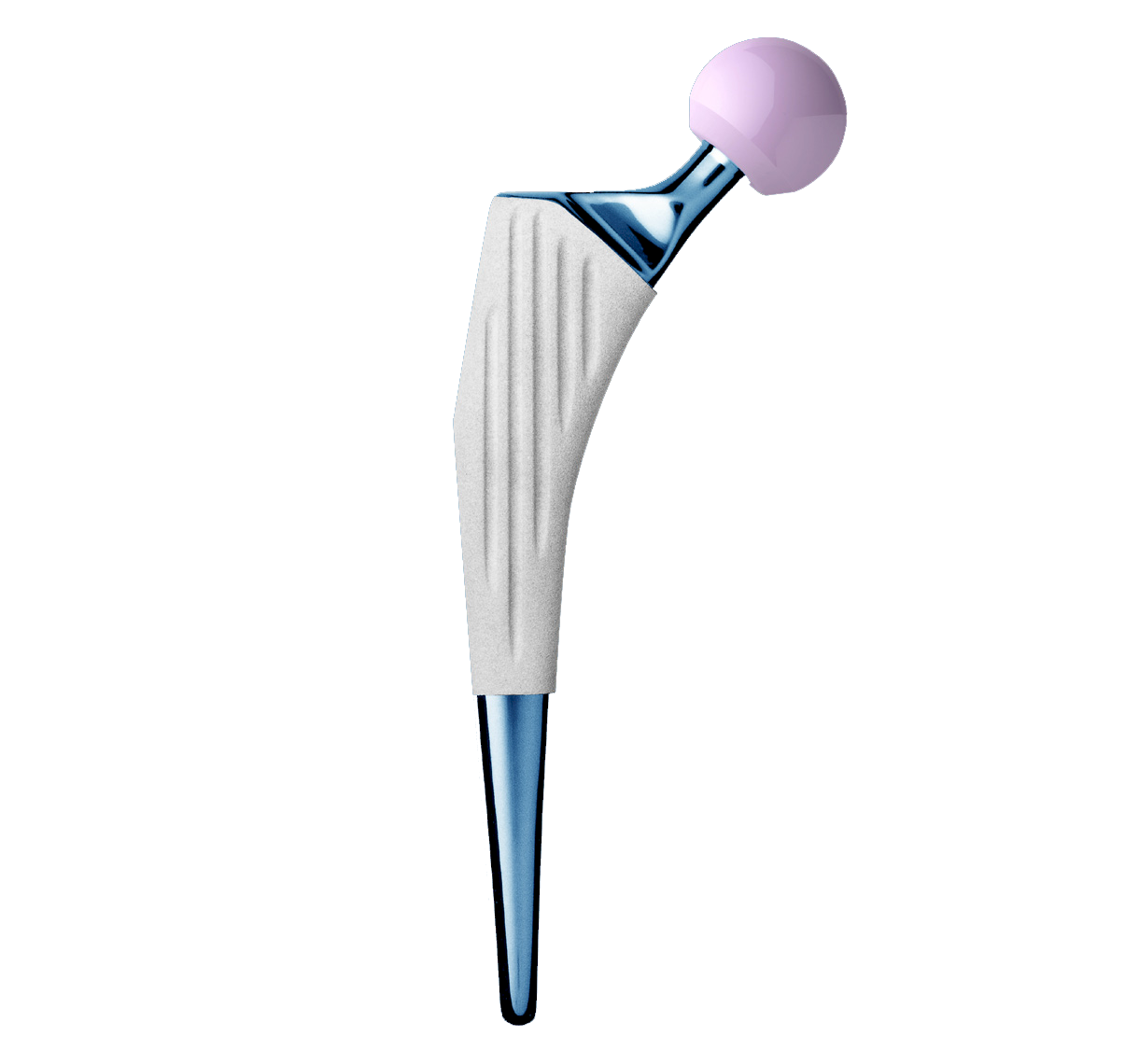

Primary straight femoral stems.
Partially HAP-coated.
The LOGIC® stem is part of the primary straight femoral stems product line (INTEGRALE®, LOGIC® and GENERIC® stems) that differ only in their fixation method.
In clinical use since 1999.

“Some devices may not be approved in your country, please contact your local distributor for further information”

gcscyk9tq9





Grooves increase the bone–implant contact area; they are closed proximally and open distally.
Proportionately scaled sizes.
Impaction limit corresponds to HAP boundary.
Material: titanium.
Coating: Partial 80 µm thick HAP layer.








wvw8vj8ey6

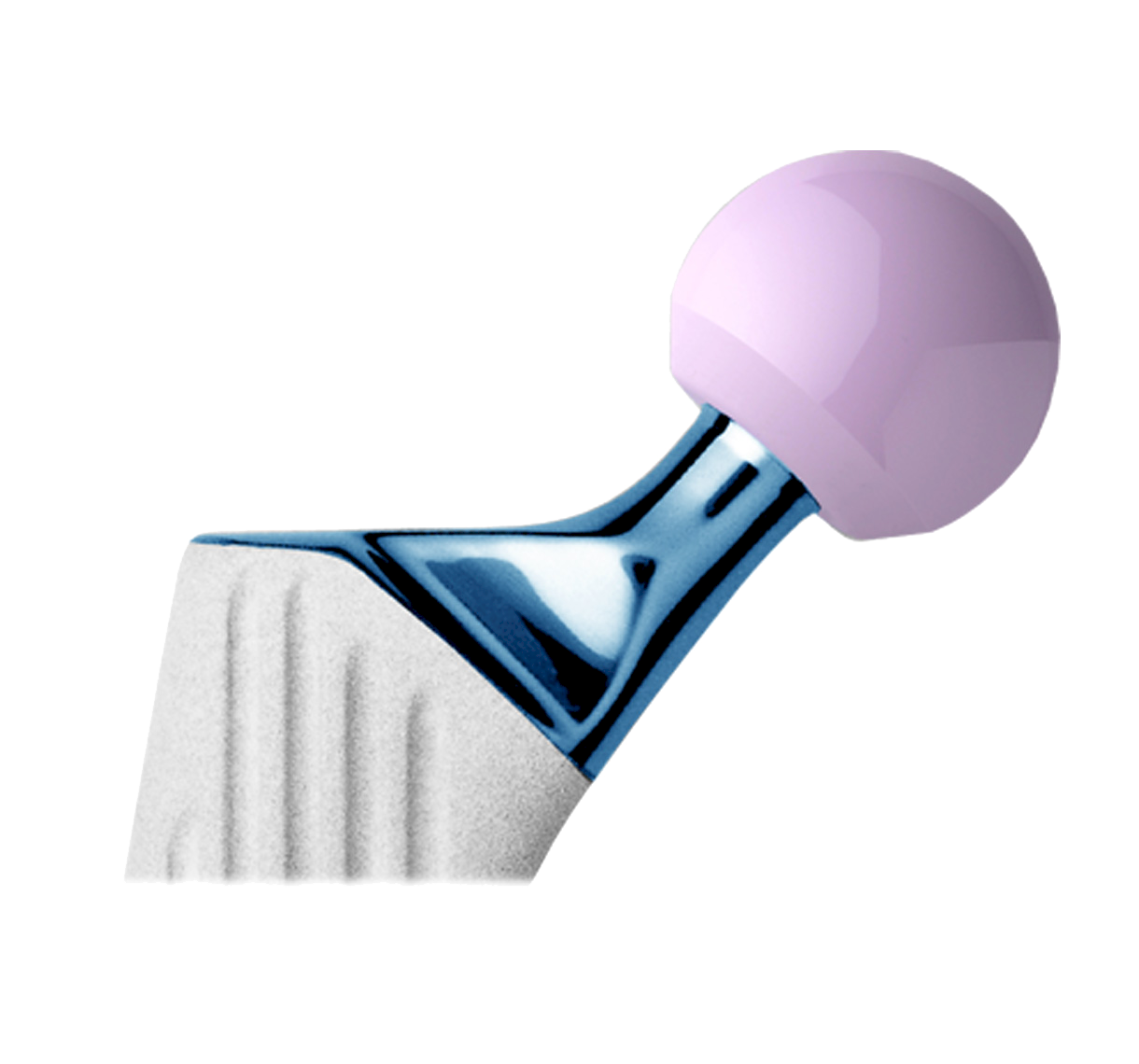

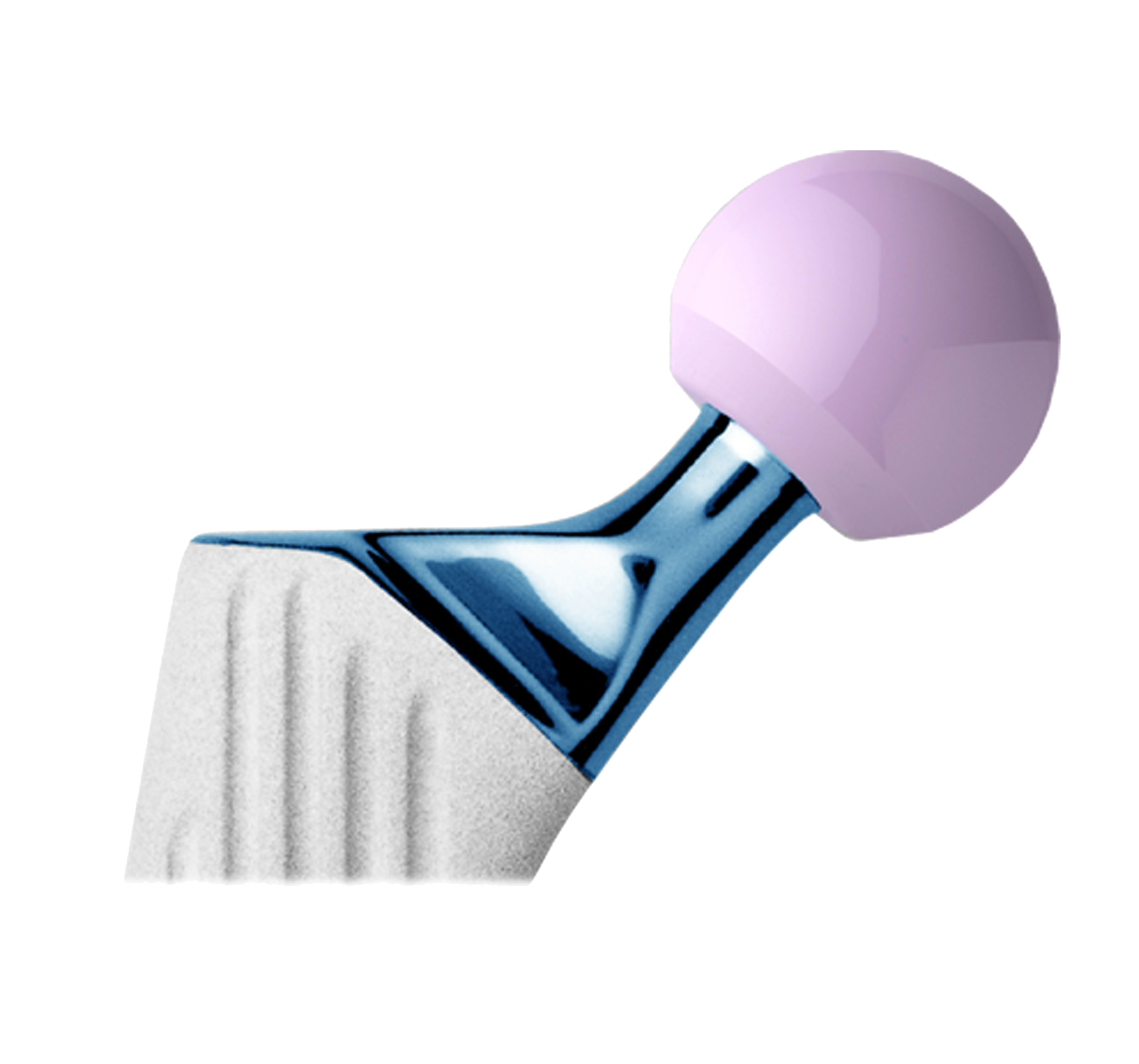

Primary stability ensured by ovoid metaphyseal cross-section that optimises metaphyseal filling.
Neck-shaft angle: 137°.







jze3ygx1ji







Oval impaction hole on top of stem.
Threaded hole used for extraction.








7nekqszlye

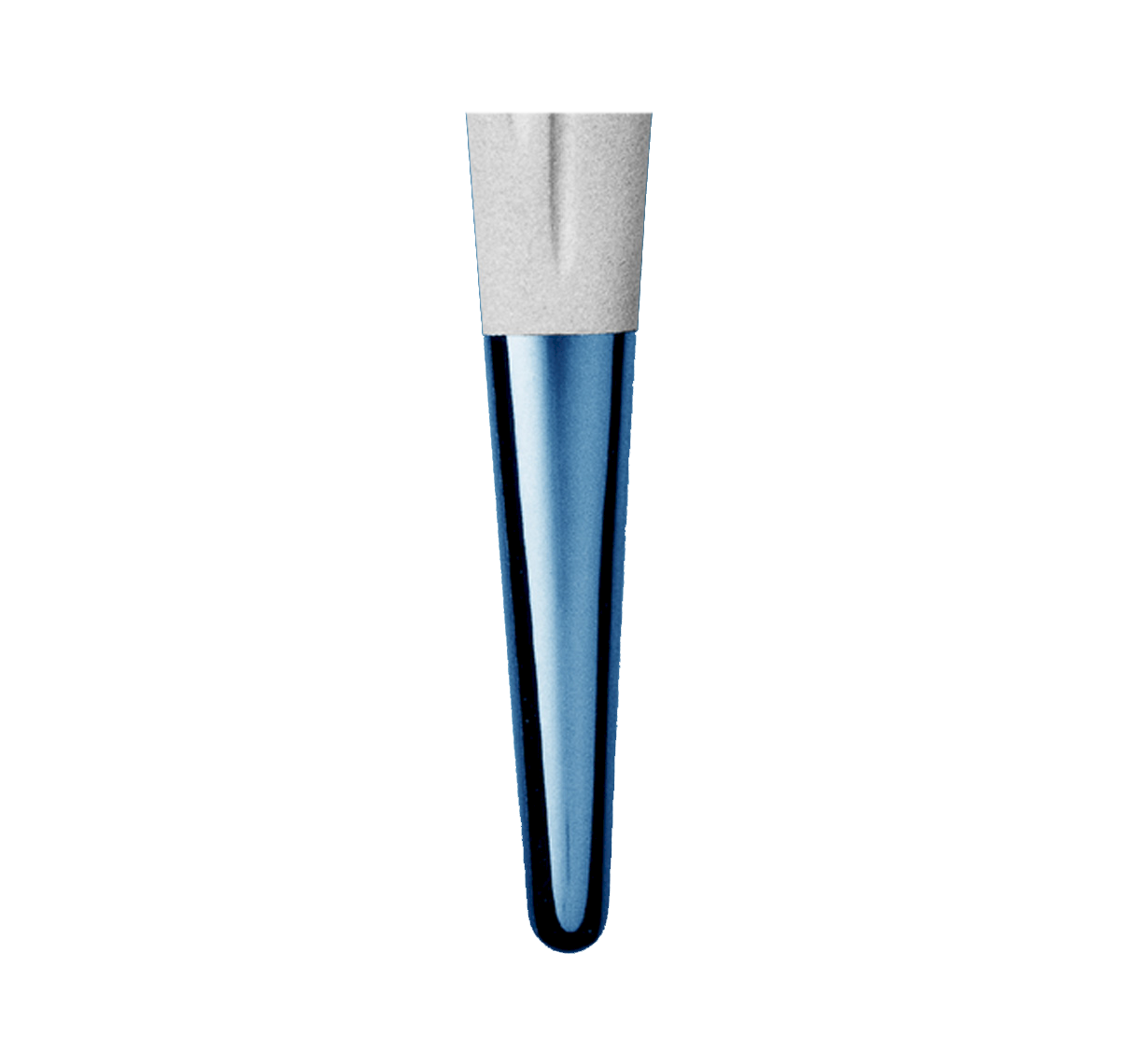

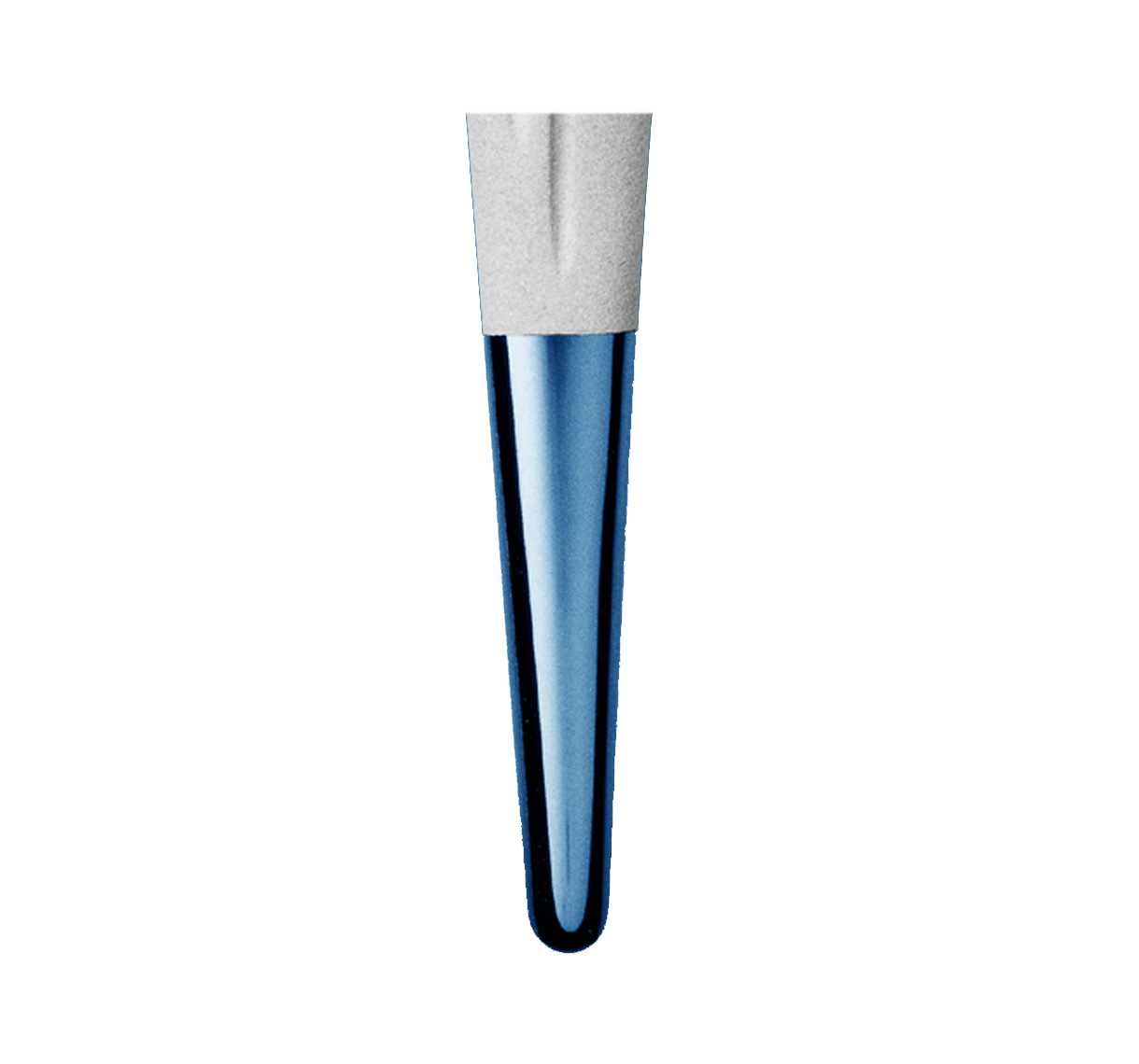

Distal third of stem is not coated and has a thin, distal end.










nprdiyi235

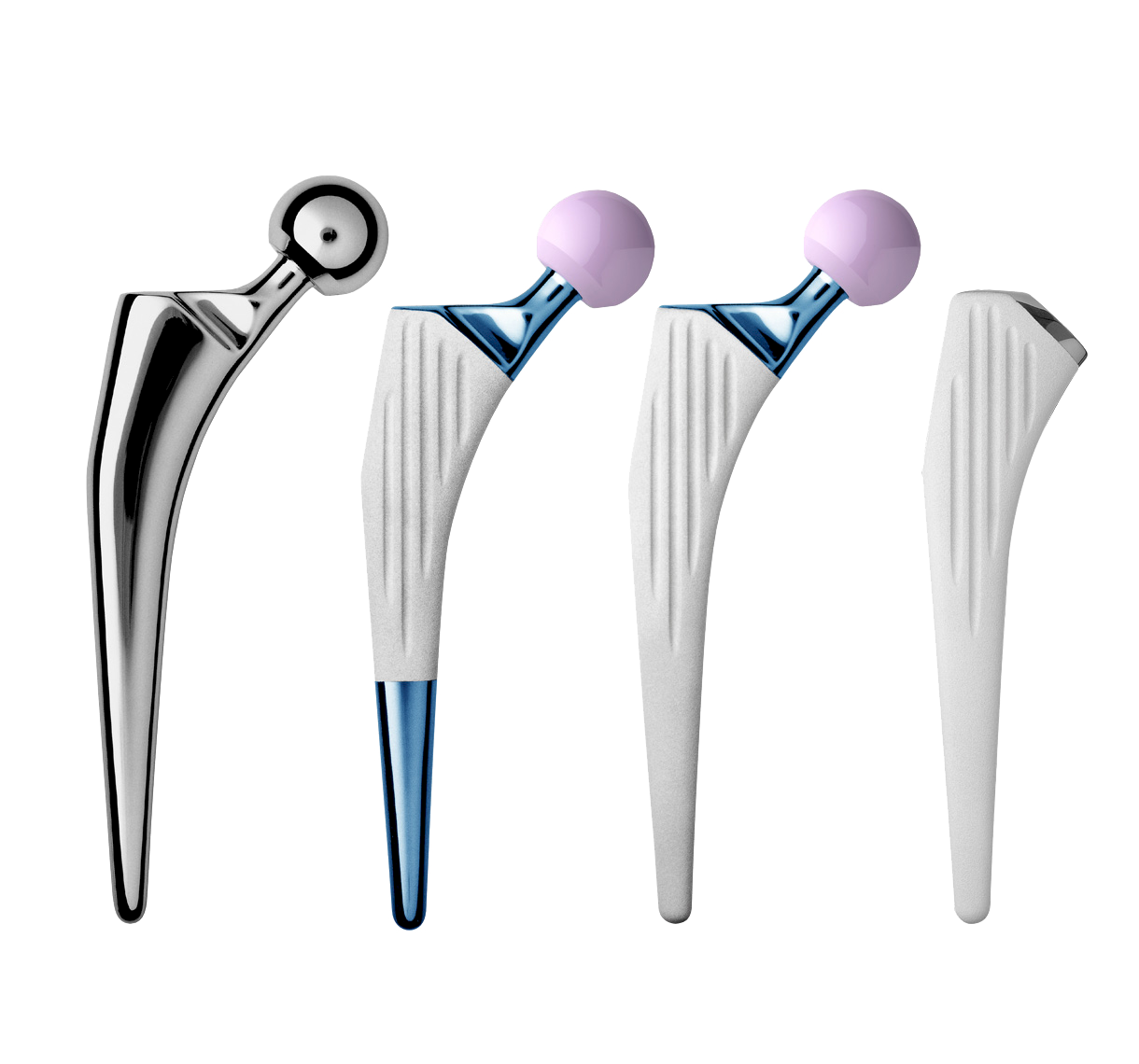

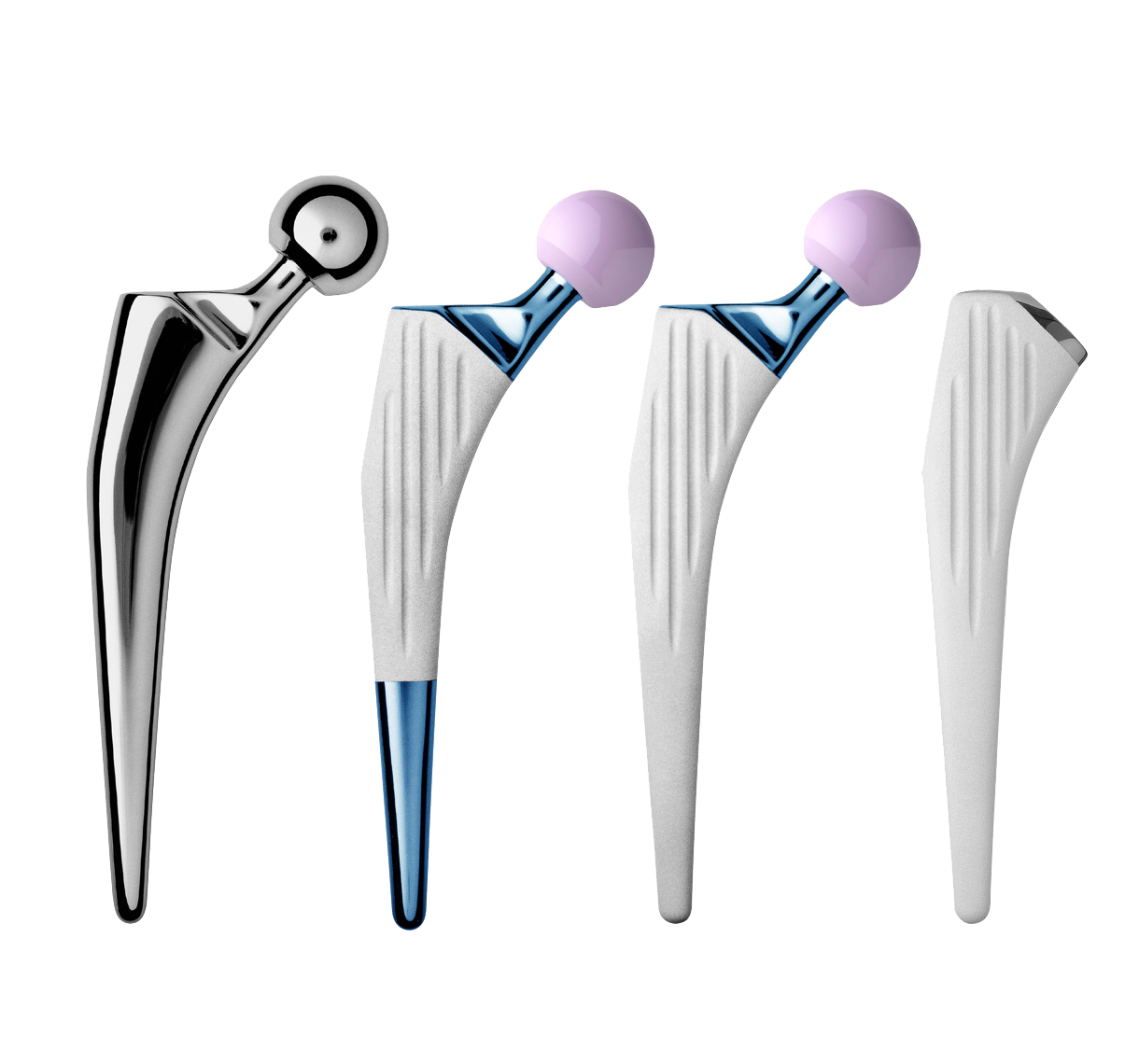

Femur stem option within a product line based on the same concept:
GENERIC®: cemented femoral stem.
LOGIC®: partially coated, straight femoral stem.
INTEGRALE®: fully coated, straight femoral stem.








xjyuc2vq9g





The INTEGRALE®, LOGIC® and GENERIC® stems share the same instrumentation sets, which can be used either during conventional surgery or with Computer Assisted Surgery (AMPLIVISION®):
- Computer Assisted Surgery of the cup and femoral stem helps to maintain leg length and offset.

Several rasp handles suitable for the various hip approaches are available for use with or without AMPLIVISION®:
Posterior approach.
Anterior approach with patient on their side.
Anterior approach with patient supine.
Anterior Hueter approach with patient supine.

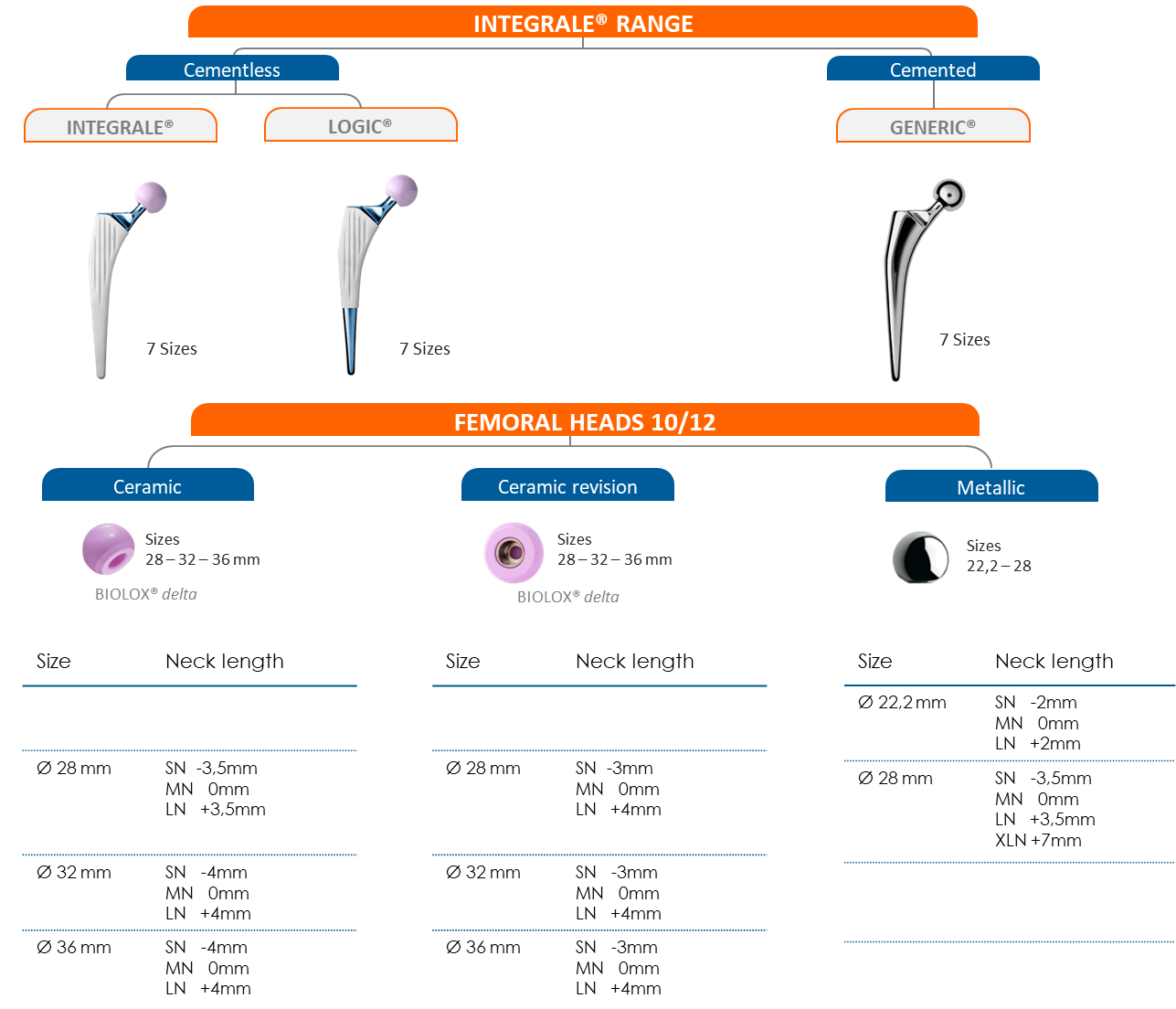

I_L_G_SCHEMA_GB (1)

Download documentation
