Knee - Unicompartimental knee prosthesis UNI SCORE®
CE2797

UNI SCORE® is a unicompartmental knee arthroplasty implant that provides multiple options.
It consists of a cemented or cementless femoral component that is compatible with all the associated tibial baseplates.

“Some devices may not be approved in your country, please contact your local distributor for further information”

z658l132gw



The femoral component is symmetrical.
Available in cemented and cementless versions.
In the cementless version, the press-fit effect is made possible by a dual coating of plasma-sprayed titanium (80 µm) and HAP (80 µm).
It has a constant radius of curvature throughout the range of motion.
Up to 8° camber possible.
Femoral component is 6 mm thick
Primary stability ensured by two parallel pegs forming a 65° angle with the distal cut.
It is possible to choose between different types of baseplates and different types of fixation (cemented or cementless).
In the cementless version, the press-fit effect is made possible by a dual coating of plasma-sprayed titanium (80 µm) and HAP (80 µm).




al03pv0w8q







The cementless version of tibial baseplate for fixed-bearing insert is asymmetrical (MEDR/LATL and MEDL/LATR).
Primary stability of the baseplate achieved through sagittal fin and anteriorly-positioned peg
Primary fixation can be improved by adding a fixation screw
Screw hole blocked with PEEK** stopper.











2zfl3nzpn3

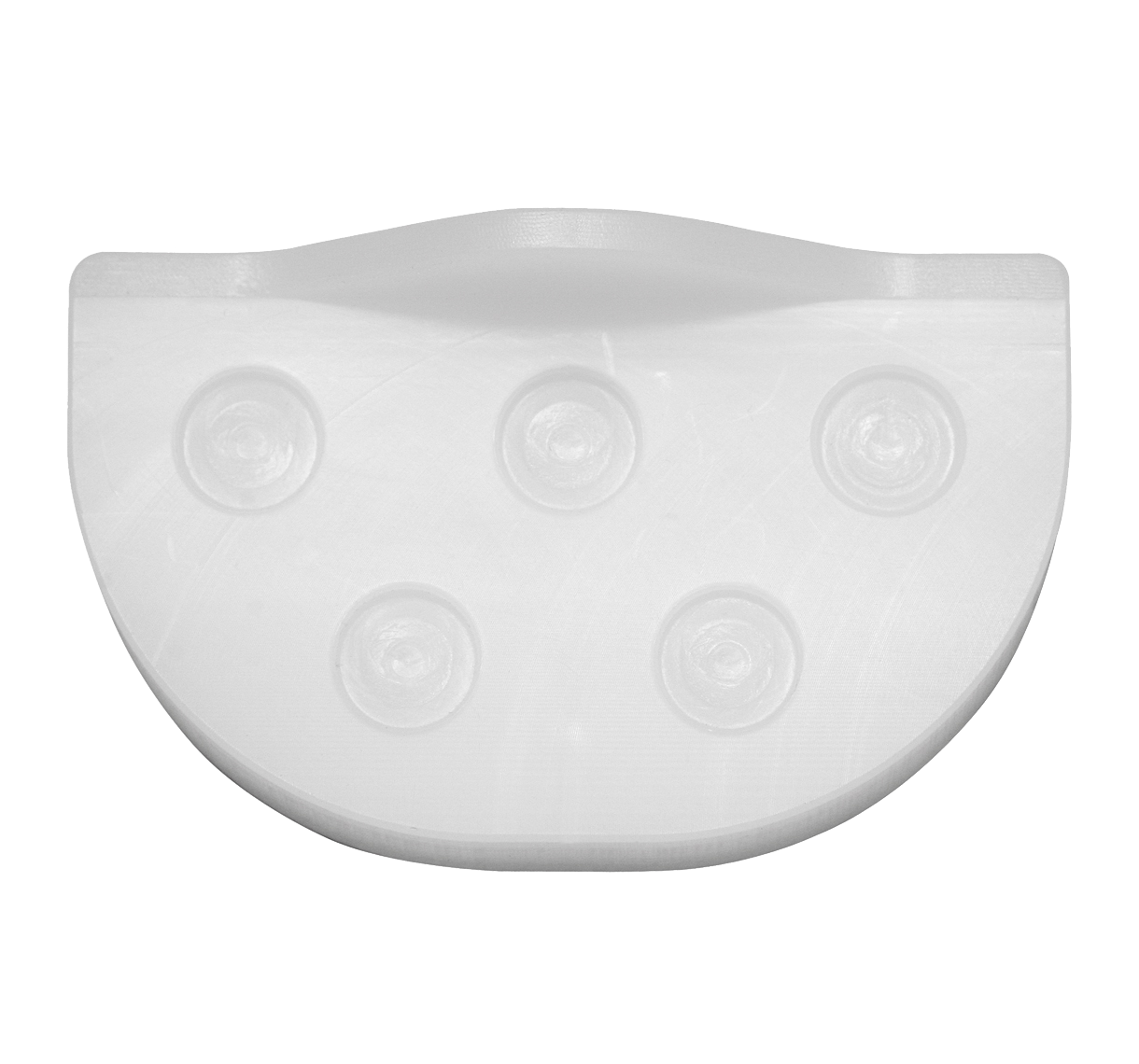

Full-PE tibial implant:
The full-PE tibial implant is symmetrical.
Flat bearing surface.
Underside of implant has 5 hollowed-out areas for cement, which ensures primary stability along with sagittal fin.






3mvdyg5fqr

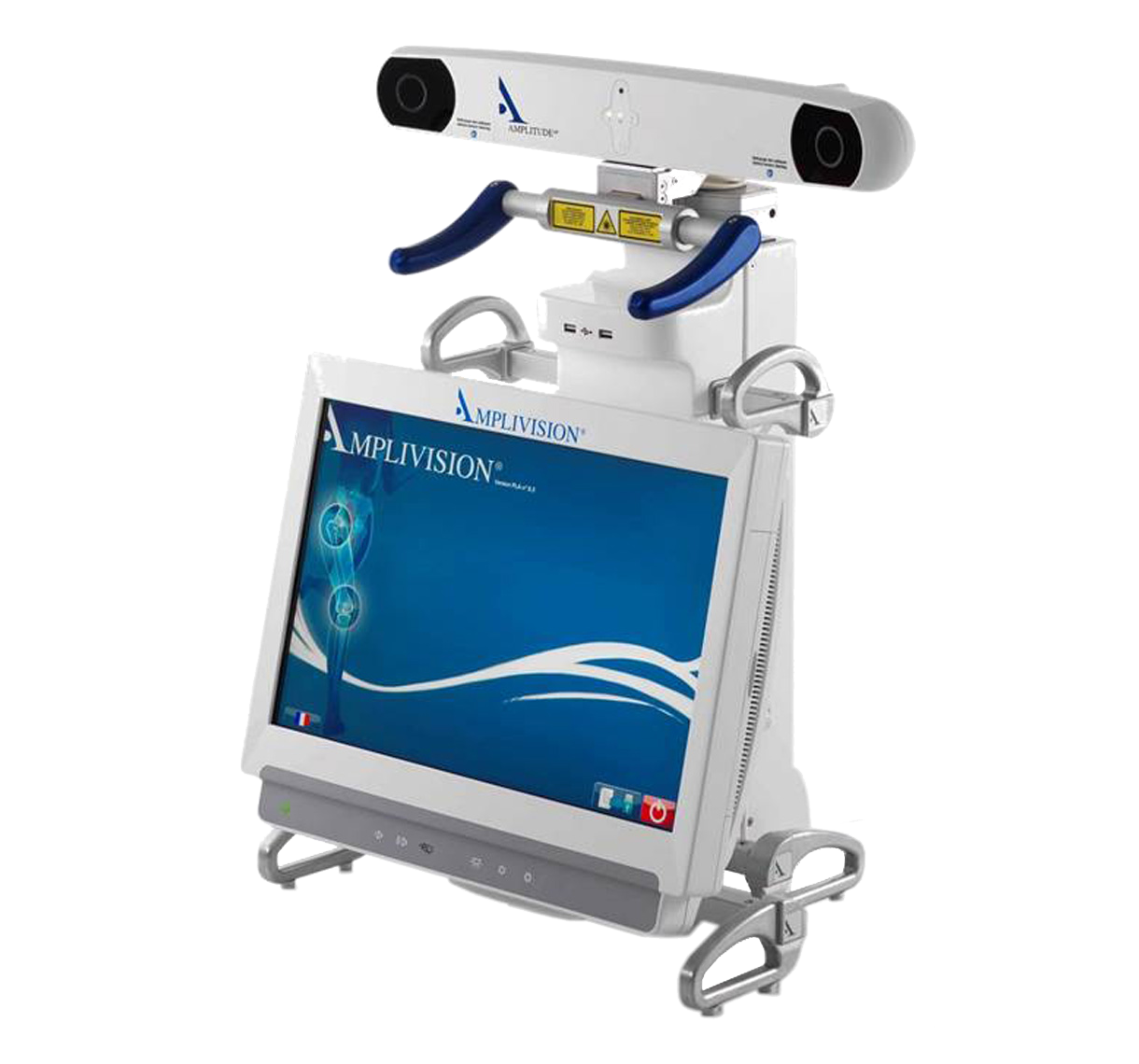

The UNI SCORE® instrumentation set can be used with Computer Assisted Surgery (AMPLIVISION®), without Computer Assisted Surgery or with patient-specific guides (i.M.A.G.E.®).

UNI_SCORE_7 Femoral components:
Cemented: 7 sizes
Cementless: 7 sizes
 Tibial components:
Cementless UNI SCORE® Tibial Baseplate for Fixed-Bearing Insert: - Tibial baseplates: 7 sizes MEDR/LATL and 7 sizes MEDL/LATR
- Inserts: 7 sizes, 4 thicknesses (9 to 12 mm)
Cemented UNI SCORE® Tibial Baseplate for Fixed-Bearing Insert:
- Tibial baseplates: 7 sizes
- Inserts: 7 sizes, 4 thicknesses (9 to 12 mm)
UNI SCORE® Full-PE Tibial Implant:
- Tibial baseplates: 7 sizes
- Inserts: 7 sizes, 5 thicknesses (8 to 12 mm)





Femoral components

- Cemented 7 sizes (from 1 to 7)

- Cemented 7 sizes (from 1 to 7)









1-mm increments between sizes:













UNI_SCORE_9











Peg dimensions (same for all sizes):













Compatibility between sizes


Femoral components:

 - Cemented: 7 sizes
- Cementless: 7 sizes


Tibial components:

Compatibilité des composants







Tibial baseplates for fixed-bearing insert and Full-PE tibial implant:
- The fixed-bearing insert can only be used with the tibial baseplate for fixed-bearing insert.
- The size of the fixed-bearing insert must match exactly the size of the tibial baseplate for fixed-bearing insert.
- All sizes of femoral component can be combined with all sizes of tibial baseplates for fixed-bearing insert and all sizes of full-PE tibial implants:
