OsTfix®

Knie - Tibiale Osteotomieplatte Tibiale Umstellungsosteotomie Platte
CE0086

Knie - Tibiale Osteotomieplatte Tibiale Umstellungsosteotomie Platte

CE0086

OsTfix®

High tibial osteotomy plate



“Some devices may not be approved in your country, please contact your local distributor for further information”

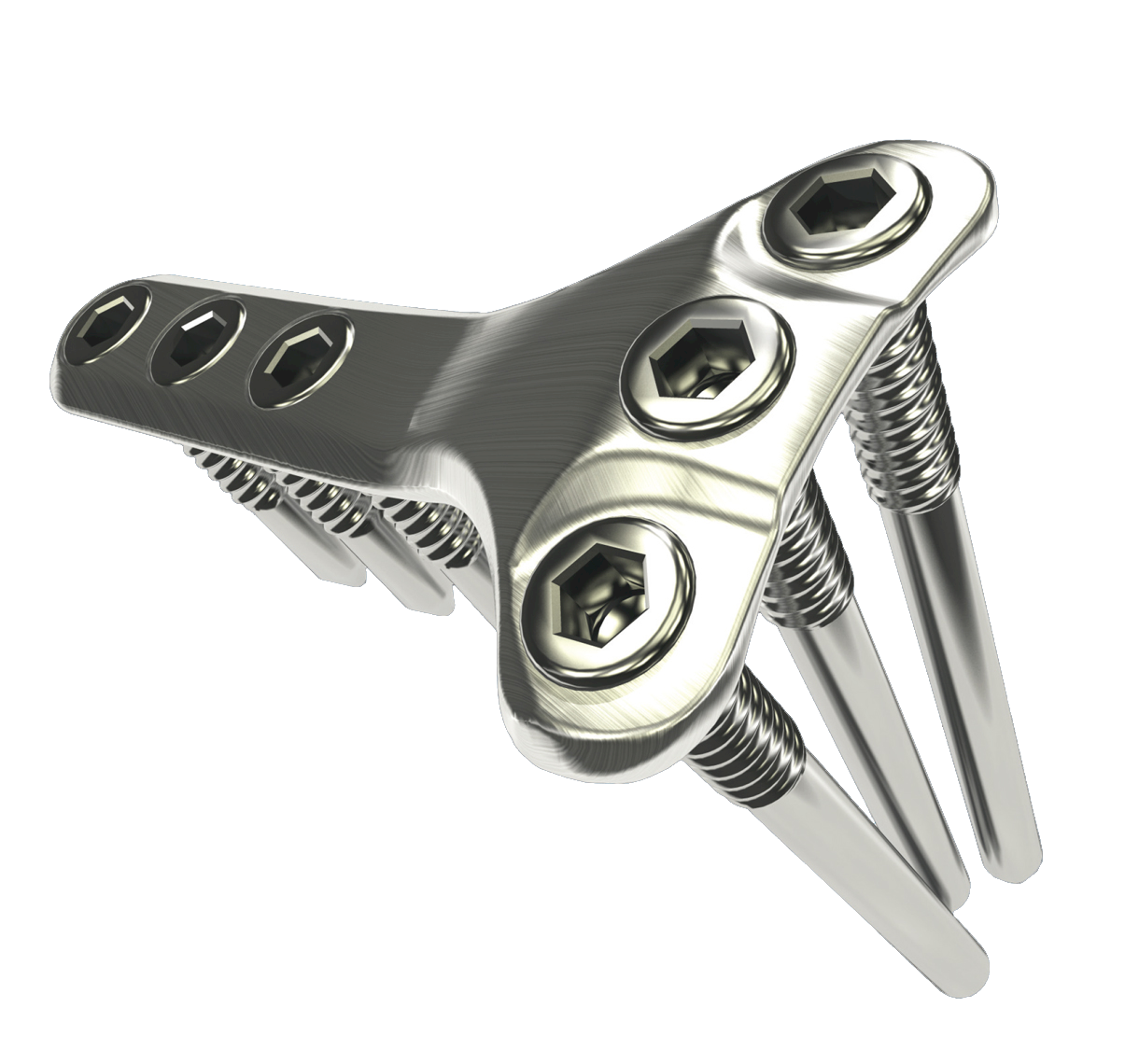

lejmoqsumi Tibial opening-wedge osteotomy plate that can withstand compressive loads of 4867 ± 944 N in cadaver testing.

Experimental testing of the stability of the Neosteo FlexitSystem tibial osteotomy.

The proximal end of the plate rests against the tibial metaphysis; its curvature allows for contact at the metaphysis and diaphysis distally (below the opening-wedge cut).

The plate is only 2.8 mm thick at the fixation points.

No intra-operative bending needed; no sharp edges on plate.

Material: titanium.






0e5whw8wrr

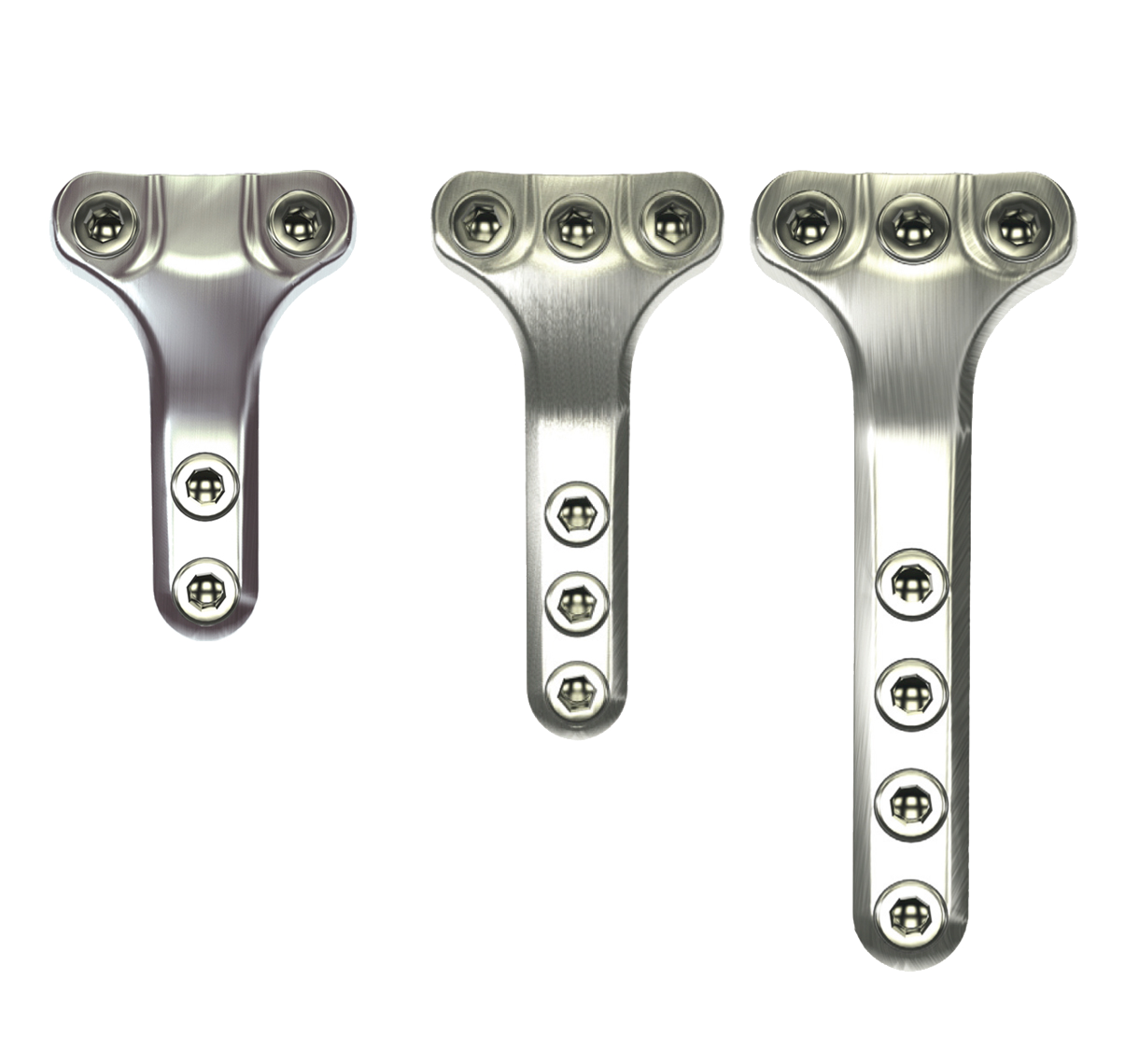

3 sizes available:

-Minimally invasive plate with 4 fixation points.

-Size 1 plate: 63 mm long, 6 fixation points.

-Size 2 plate: 80 mm long, 7 fixation points.






58nyj997lj

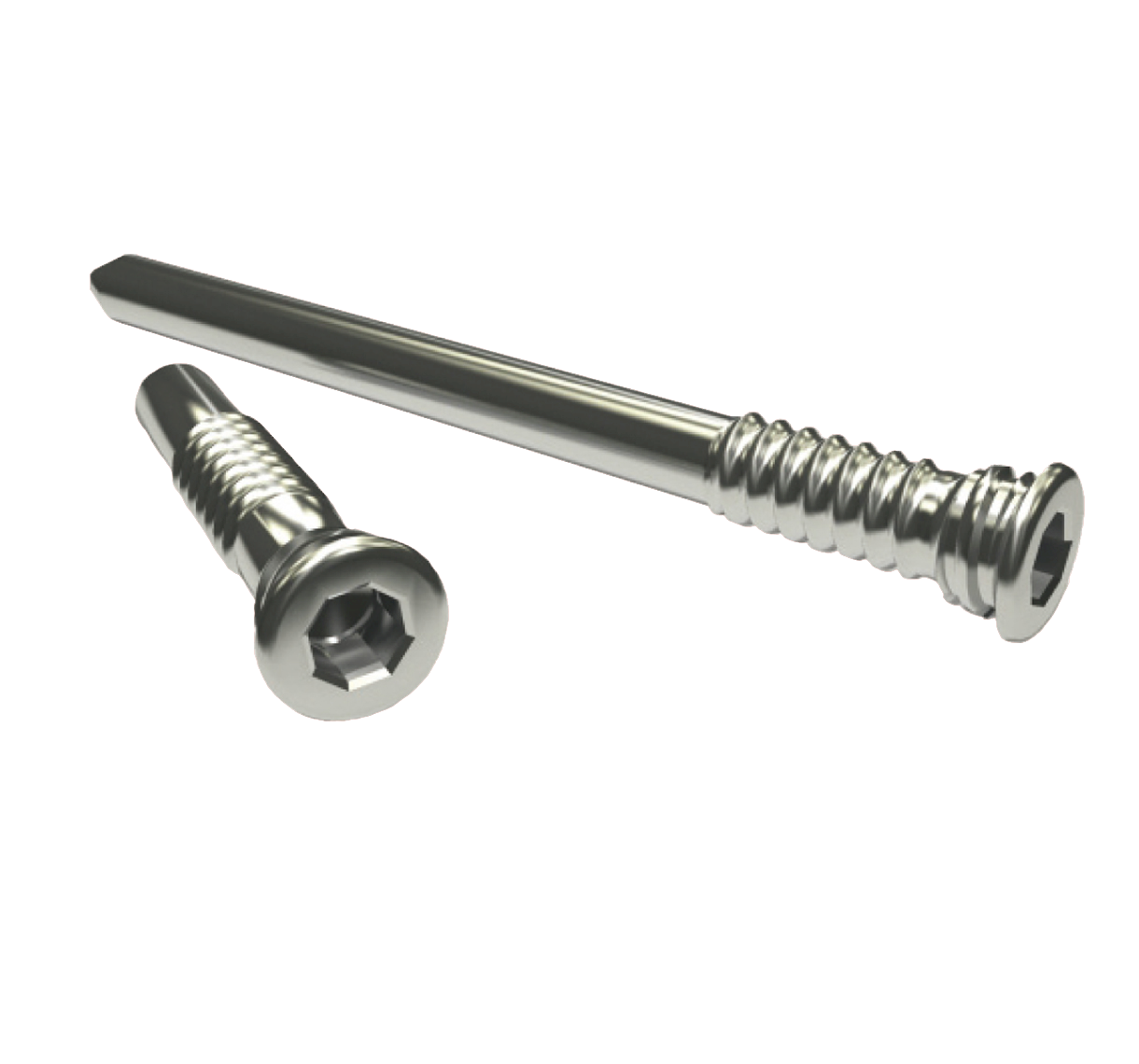

Screw or pin fixation possible; head is buried in plate.

Simple mechanical fixation without locknut; dual-threaded system helps to lock screw head.

Material: titanium.

OSTFIX_4_FR_et_GB





Palette


OSTEOTOMIEPLATTE
3 Implantatgrößen:
-Mini.
-Größe 1.
-Größe 2.

BEFESTIGUNGSSCHRAUBE
Befestigungsgrößen :
-11 Keilgrößen: Durchmesser 5mm, Länge von 25 bis 75 mm.
-12 Schraubengrößen: Durchmesser 5mm, Länge von 25 bis 80 mm.
